Under Bonnet Dual Battery Kit for Isuzu DMAX 3.0L Turbo Diesel (2012–2020)
Under Bonnet Dual Battery Kit for Isuzu DMAX 3.0L Turbo Diesel (2012–2020)
Under Bonnet Dual Battery Kit for Isuzu DMAX 3.0L Turbo Diesel (2012–2020)

Under Bonnet Dual Battery Kit for Isuzu DMAX 3.0L Turbo Diesel (2012–2020)

SKU: KIT-UB25-DMAX
$865.00
  • VEHICLE
  • INCLUDED
  • DIMENSIONS
  • Note from Manufacturer

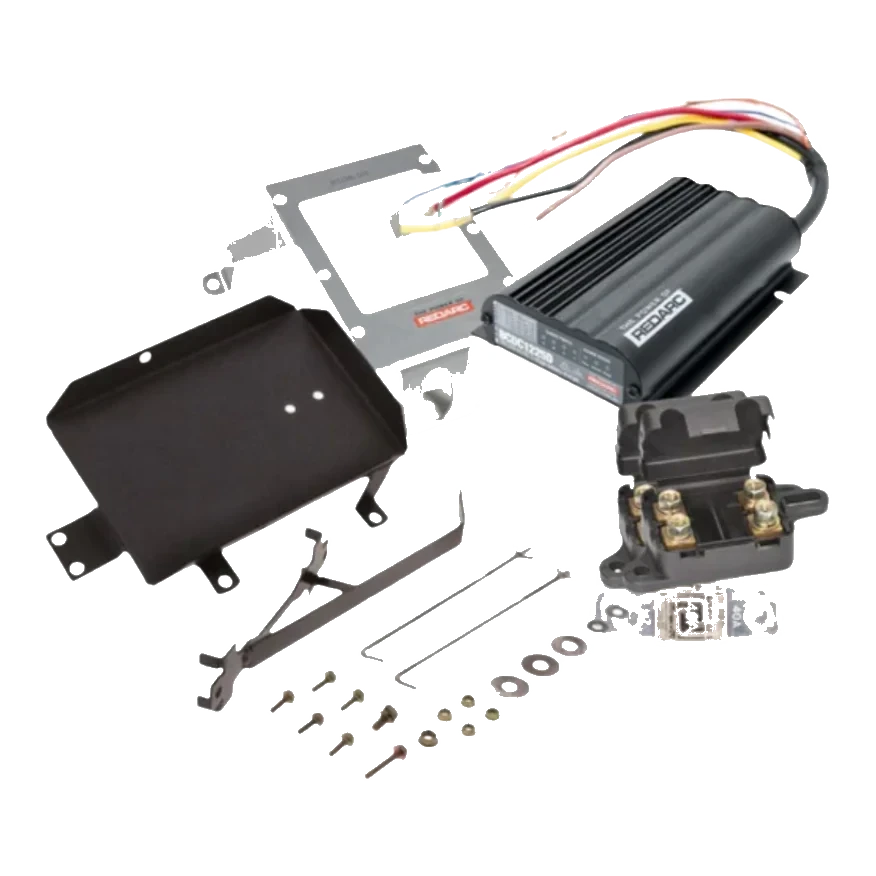

Designed for Isuzu D-MAX 3.0 TD (4JJ1-TC engine) built between 2012 and 2020. Suitable for both automatic and manual transmissions.

REDARC BCDC1225D Charger

Dual Battery Tray – DBT0171

BCDC Mounting Bracket – BCDCMB-006

2 x ELF40 40A MIDI Fuses

2 x Twin MIDI Fuse Holders (with covers)

Heat Shrink (12mm, 25mm, 38mm)

Conduit (10mm & 20mm)

Cable Lugs (10-10, 10-6, 10-8)

6m of 8b&s Twin Core Cable

Max Battery Size: 265mm (L) x 174mm (W) x 200mm (H)

Max Battery Weight: 19.6kg

Charger Dimensions: 182mm (L) x 92mm (W) x 65mm (H)

Kit is tailored to suit Isuzu D-MAX 3.0TD (4JJ1-TC engine) from 2012 to 2020, with both auto and manual transmissions.

 [{"variant_id":"40100036739181" , "metafield_value":""}]

Under Bonnet Dual Battery Kit for Isuzu DMAX 3.0L Turbo Diesel (2012–2020)

$865.00
Description

This complete under-bonnet dual battery kit is purpose-built for the Isuzu DMAX (3.0L Turbo Diesel 4JJ1-TC engine, 2012–2020). It includes the powerful REDARC BCDC1225D 25A DC-DC charger, a vehicle-specific dual battery tray, and a stainless steel BCDC mounting bracket – all designed for seamless engine bay installation.

The kit also comes with premium wiring, fuse protection, lugs, conduit, and everything needed for a professional, clean setup.

Suggested Battery
SSB HVT50D – 60Ah 600CCA Dry Cell AGM Deep Cycle

Solar Add-On (Optional, Not Included)
To enable solar input, you'll need:
6mm twin-core cable
SB50 Anderson plug
SB50 dust cover

FEATURES


Vehicle-specific fitment for Isuzu D-MAX 3.0TD

Supports dual input charging (alternator + solar)

Complete installation kit with all hardware included

Durable powder-coated steel tray

304-grade stainless steel mounting bracket

Engineered for Australian conditions

Specifications

Charger: REDARC BCDC1225D, 25A output

Input Types: Alternator and Solar

Solar Regulator: Built-in MPPT with Green Power Priority

Tray Compatibility: HVT50D or equivalent

Cable: 6m of 8b&s twin core

Fuses: 2 x 40A MIDI fuses with holders and covers

Conduit Sizes: 10mm & 20mm

Heat Shrink Sizes: 12mm, 25mm, 38mm

Cable Lugs: 10-10, 10-6, 10-8

Installation Information

Engine bay installation using existing factory mounting points

No drilling required

Includes all wiring, fuse protection, mounting bracket, and heat shrink

Warranty Information

REDARC BCDC1225D: 3-year manufacturer warranty

Mounts and accessories: 1-year warranty

PICKUP OR SHIPPING

Pickup available in-store at Elevate Automotive. Shipping Australia-wide and internationally.

FAQ's

Q: Can I add solar input?
A: Yes. You’ll need 6mm twin cable, an SB50 Anderson plug, and SB50 cover.

Q: Is this kit compatible with MU-X?
A: Yes, also compatible with MU-X models with the same engine.
