Eaton Bussmann HMEG MEGA fuse holder with hinged cover closed

Bussmann

Eaton MEGA Fuse Holder — Bolt-Down 10A to 300A

Name: Eaton Bussmann MEGA Fuse Holder — Bolt-Down 10A to 300A
Brand: Bussmann
SKU: EATON-HMEG
Price: 32.00 AUD
Availability: InStock

EATON-HMEG

Eaton Bussmann HMEG single-position bolt-down MEGA / AMG fuse holder with cover. Rated for AMG fuses from 10A to 300A. Fits any brand's MEGA fuse. 32V DC industry-standard rating.

Positions1

VoltageUp to 32V DC

Fuse typeMEGA / AMG

$32.00

4 interest-free payments of $8.00 with Afterpay

or finance your build with Allied Finance

We accept Visa Mastercard Amex Apple Pay PayPal Zip Afterpay Finance

Universal fitmentSingle-position MEGA / AMG fuse holder for 12V and 24V DC systems.

Shipping & collection

Worldwide shipping available^*

In-store pickup

Professional installation available

*Shipping is calculated at checkout based on your location. Some products can't be delivered to every address.

An Eaton Bussmann HMEG single-position bolt-down fuse holder that protects one heavy DC circuit up to 300A. Takes any brand's MEGA / AMG fuse, so it fits auxiliary battery main feeds, DC-DC input or output legs, solar controller feeds, and inverter supply lines. Suits caravans, camper builds, 4WD dual-battery systems and boat helms where one high-current circuit needs its own dedicated fuse.

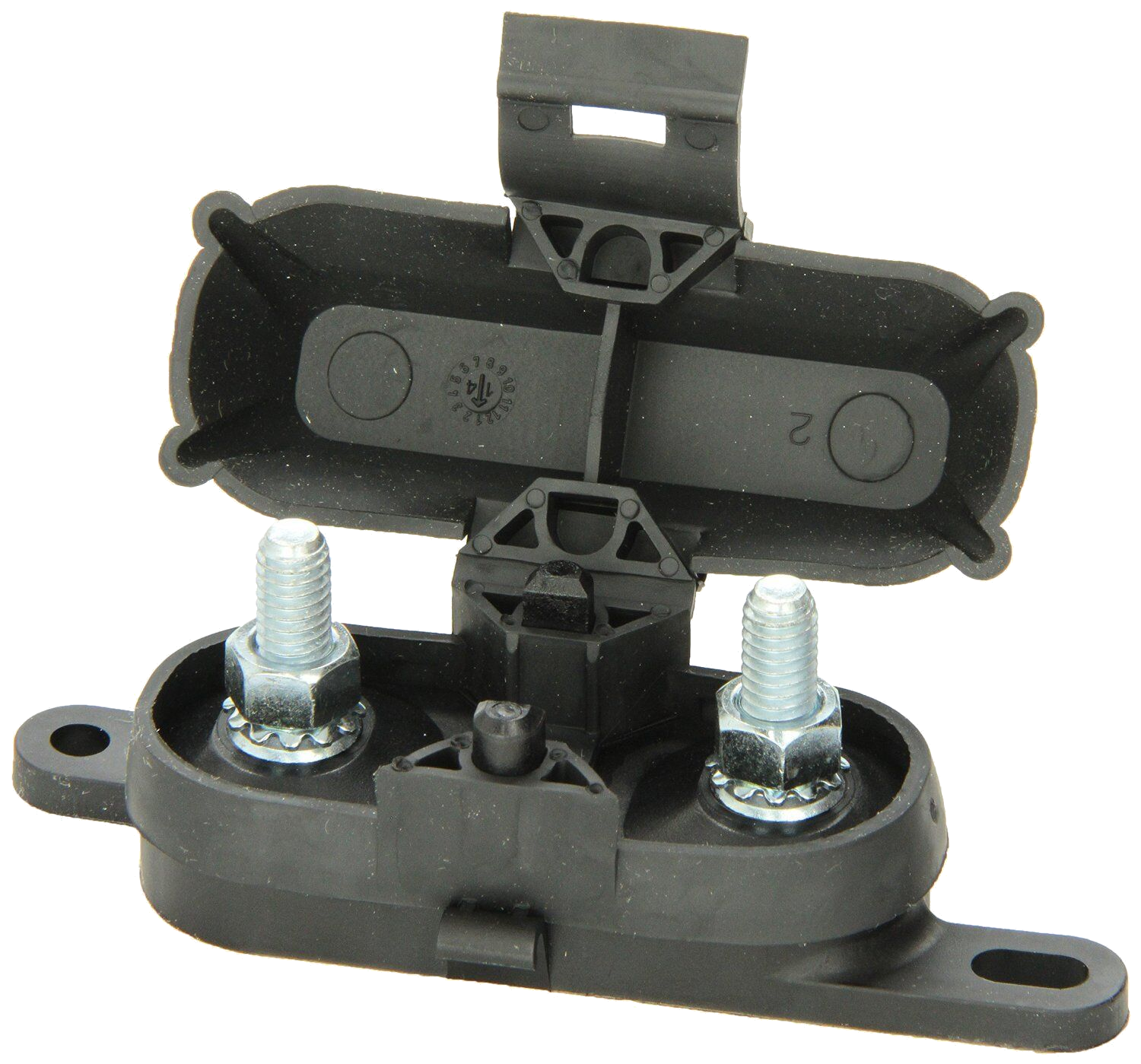

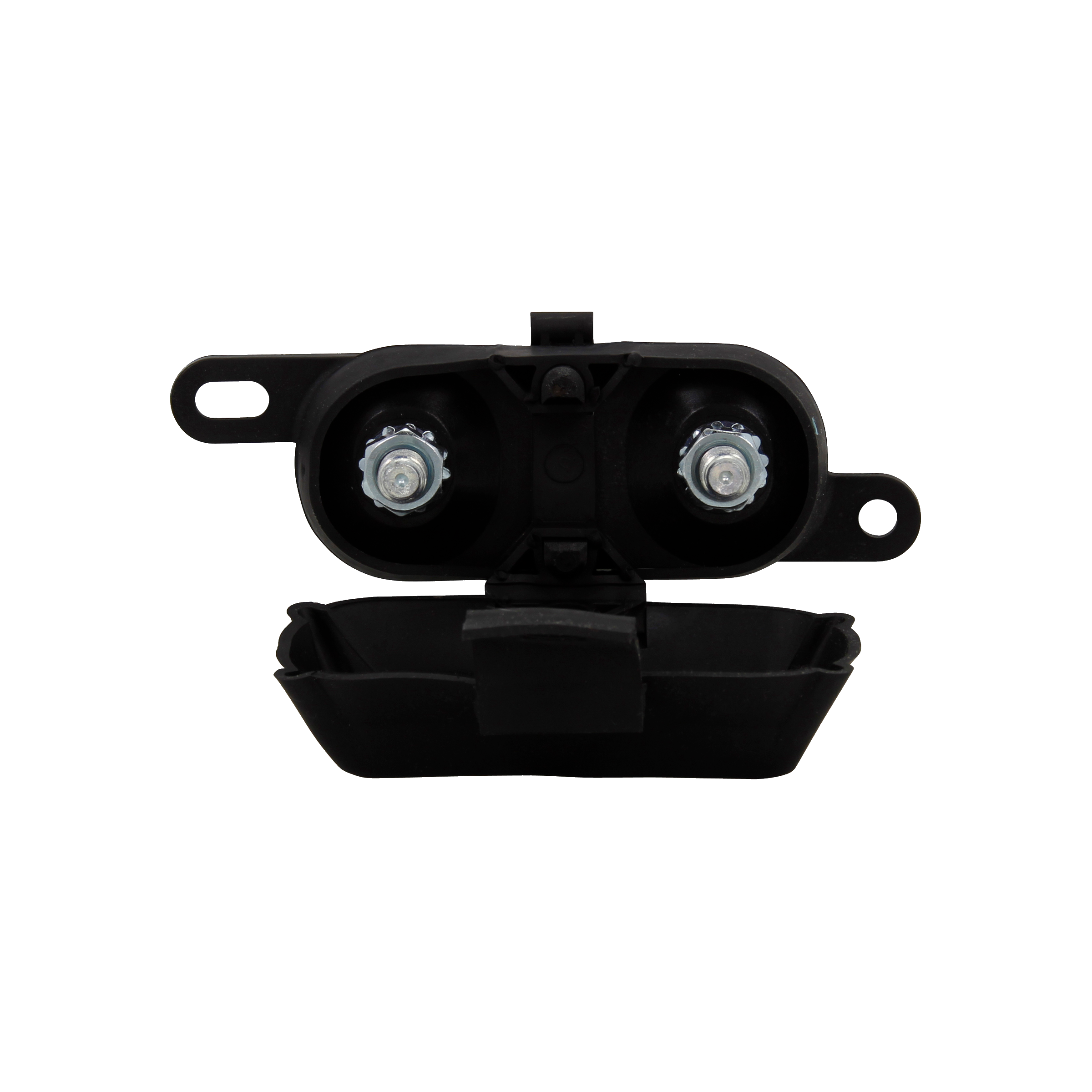

The holder bolts down through its base and accepts wire from 8 AWG through 2 AWG at each stud. A hinged plastic cover shields the live terminals and fuse from accidental contact, and lifts open for fuse swaps without unwiring. MEGA / AMG is a shared bolt-down fuse standard, so any brand's MEGA fuse fits.

Size each fuse to the cable it protects, not the load. Undersized cable behind an oversized fuse is a fire risk. Standard MEGA / AMG fuses are rated 32V DC, which covers 12V and 24V DC systems. Not for 48V.

You'll also need

A MEGA fuse sized to your circuit (sold separately):

MEGA Blade Fuses — 40A to 300A

$15.50

Also in our range

If you need two or four fused positions off a single feed, our own MEGA bus-bar holders share the same fuse standard:

MEGA Fuse Holder — 2-Way with Cover

$29.00

4 Bay Mega Fuse Holder with Cover

$49.00

Bussmann series — Eaton's trusted fuse line
Single-fuse layout — one feed, one fused position
Cover included — shields live terminals once wired
MEGA / AMG standard — any brand's fuse fits
Wire range — accepts 8 AWG to 2 AWG

Fuse compatibility

Fuse type: MEGA / AMG

Positions: 1

Range: 10A–300A (fuse-dependent)

Voltage: Up to 32V DC

Housing

Cover: Included

Mounting: Bolt-down

Wire range: 8 AWG–2 AWG

Indicator: Non-indicating

Single-position MEGA / AMG fuse holder for 12V and 24V DC systems.

12V and 24V DC systems (32V DC industry-standard fuse rating)

48V DC systems, use a 58V-rated MEGA fuse holder instead

Q: What's a MEGA / AMG fuse?
MEGA (also sold as AMG in some ranges) is a bolt-down, stud-mount fuse standard used for high-current DC main feeds and heavy branch circuits, bigger and higher-rated than a blade or MIDI fuse. It's a shared industry form factor, so any brand's MEGA/AMG fuse fits a MEGA-rated holder like this one.

Q: What amperage MEGA fuse should I use?
Size the fuse to the circuit it protects, not the holder itself. Eaton's AMG range covers 10A to 300A. The right amperage depends on the cable size and load downstream. Undersized cable behind an oversized fuse is a fire risk, so size the fuse to protect the cable, not just the load.

Q: Does it come with a fuse?
No. MEGA / AMG fuses are sold separately so you can match the amperage to your circuit.

Q: What voltage systems does this cover?
Standard MEGA / AMG fuses are rated 32V DC, which covers 12V and 24V DC systems with margin. It's not rated for 48V DC systems, where you'd want a 58V-rated MEGA holder and fuse instead.

Q: What wire sizes can I connect?
Eaton lists the HMEG as accepting 8 AWG through 2 AWG on each stud, which is roughly 8mm² up to 35mm² automotive cable. Sized to carry the current the fuse allows.

Q: How's this different from the house-branded MEGA holders in our range?
Same MEGA / AMG fuse standard, so both accept identical fuses. This one carries Eaton's Bussmann brand and warranty. Our own bus-bar holders (twin and 4-bay) let you fuse two or four circuits off a single feed instead of just one.

Q: How do I mount it?
It bolts down through the base. Check clearance for the cover before final positioning so it can hinge open for fuse swaps.

Q: What's the cover for?
The hinged plastic cover shields the live terminals and fuse from accidental contact once the holder's wired in.

Q: Can I mix fuse brands?
Yes. MEGA/AMG is a standardised fuse form factor, so any brand's MEGA fuse fits a MEGA-rated holder like this one.
